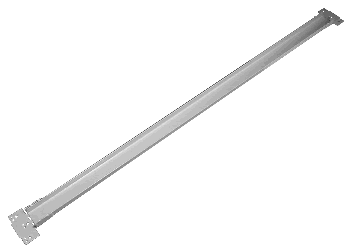

100 SERIES

Houck 100 series bread board slide is our most versatile bread board storage system. Non-Handed channels easily mount to face frame or panel style cabinets. There is a choice of six different metal mounting brackets to choose from for use with staples or screws. Uncoated satin finish is standard. Epoxy powder coating in white, almond or black is available upon request. Brackets are welded in place for powder coated parts. Designed to store 3/4" breadboards and cutting boards. Designed for cutting board storage only. Proudly manufactured and assembled in the USA.

100 series breadboard slides breadboard storage

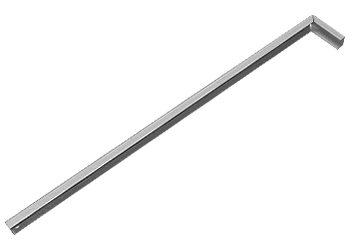

150 SERIES

Houck 150 series V-Notch breadboard slides permit convenient storage of breadboards and cutting boards. Non-Handed channels easily mount to face frame. Uncoated satin finish is standard. Epoxy powder coating in white, almond or black is available upon request. The 150 series will store 3/4" breadboards. Option positive stop is available to limit cutting board travel. Designed for cutting board storage only. Proudly manufactured and assembled in the USA.

150 series breadboard slides breadboard storage bread board

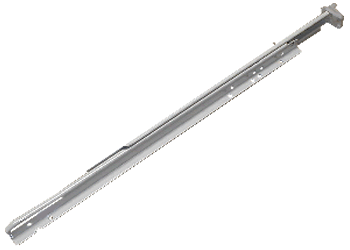

200 SERIES

Dual captive drawer and cabinet members provide maximum tracking. Wheels remain positioned properly on tracks while rolling freely. Four point capture provides maximum restraint in side play of drawer. Houck patented floating wheel comes standard. Drawer slides available with self-close, stay close or no closing feature. Epoxy powder coated in standard colors of white and almond. Other colors available upon request. Houck's economical domestic drawer slide. 75 lb. capacity. 3/4 extension. Available in custom lengths up to 4' (lengths longer than 24" (600mm) not capacity tested. Proudly manufactured and assembled in the USA.

200 series sidemount slides sidemount epoxy

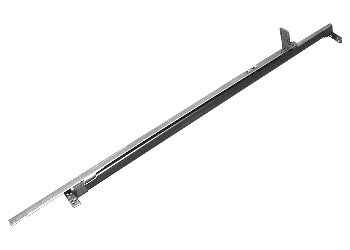

500 SERIES

Houck's original concealed undermount drawer slide system. Captive channel track for reduced side play and accurate, easy installation. Mounts with staples or screws. Rear brackets allow for rail or strongback mounting Quattro captured. Custom and standard lengths available. Uncoated satin finish is standard. Epoxy powder coated in colors of white and almond available upon request. The 18" slides have a 75 lb. load capacity. Now with acetal wheels for longer life and higher load capacity. Proudly manufactured and assembled in the USA.

500 series go e z goez

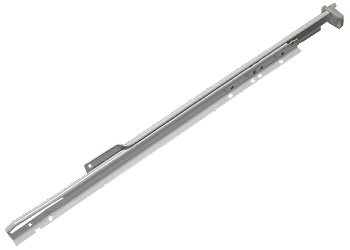

950 SERIES

Our 950 series drawer slide system is designed for standard and custom lengths and configurations. With five different front styles and three rear mounting options the 950 series provides a large variety of mounting options. Quattro captured for accurate tracking, with patented floating wheel. Roll formed for smooth, quiet roll with integral rear wrap. Lengths are not restricted by 50mm length increments. Epoxy powder coated in standard colors of white and almond. Other colors available upon request. 100 lb. capacity, 3/4 extention. Proudly manufactured and assembled in the USA.

950 series sidemount slides epoxy slides captured slides

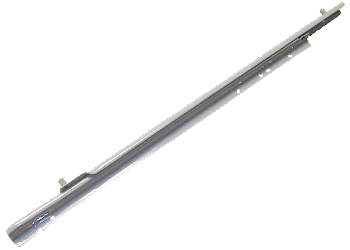

1209 SERIES

Adjustable Pilaster System features our 950 series drawer slides with attached 8mm diameter splined dowels. Pre-drilled pilasters come with 8mm holes spaced at 32mm increments providing quick installation and versatility. The 1209 pantry system provides four pilasters and self-closing hardware for five Rollout shelves. The 1209 base system provides four pilasters and self-closing hardware for two Rollout shelves. Epoxy coated drawers slides are available in white and almond. Additional drawer slides may be purchased separately to add additional drawers or shelves. 100 lb capacity, 3/4 extension. Proudly manufactured and assembled in the USA.

1209 pantry base pilaster system shelf storage



All Houck 100, 150, 200, 500, 950 and 1209 drawer slides are made and assembled in America using domestic suppliers.
